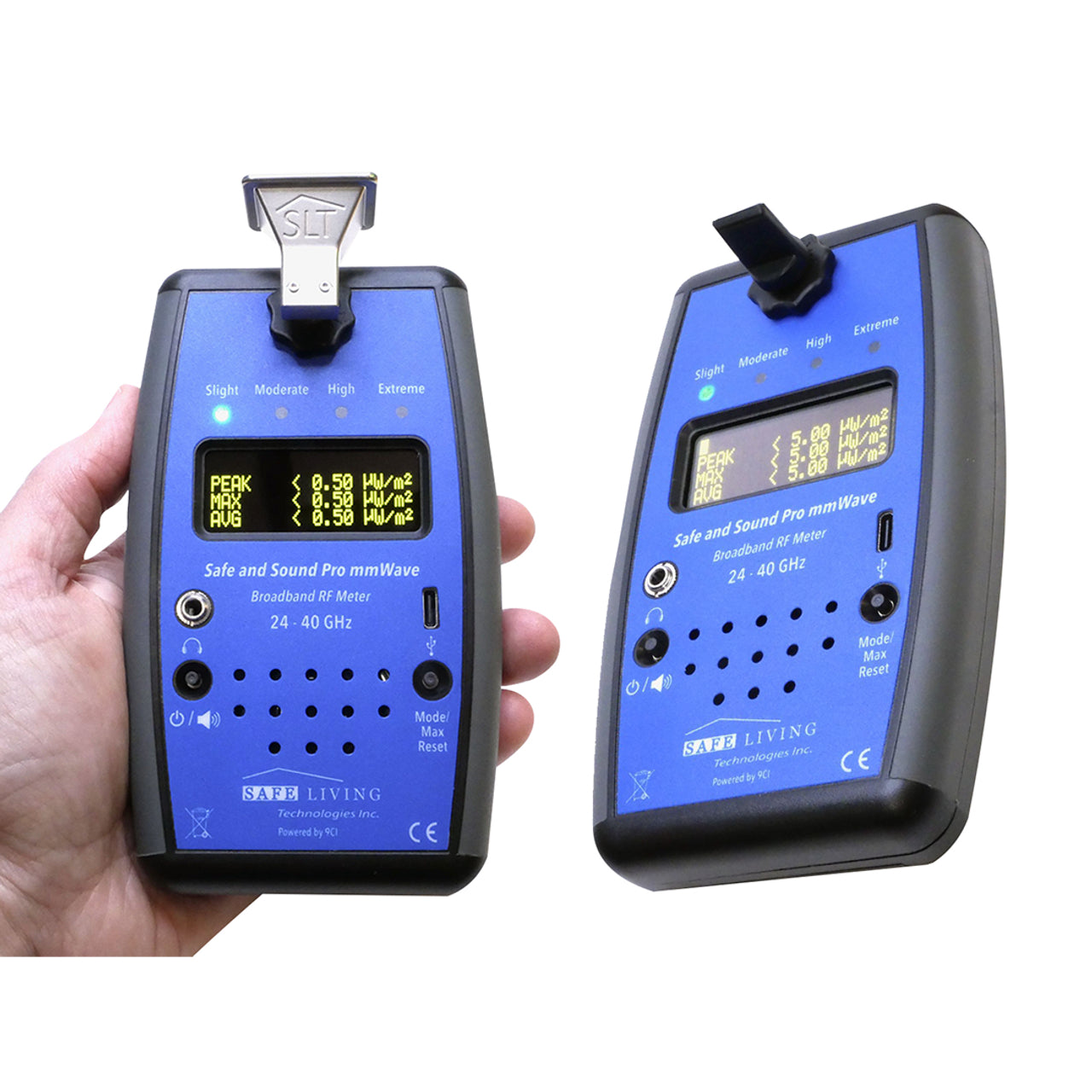

SLT Safe and Sound mmWave 5G Meter

£694.00

5G Ready! - High Band From 20 GHz to 40 GHz

Safe Living Technologies is pleased to present the Safe and Sound Pro mmWave Meter - North America’s first-ever, consumer-level, high-band 5G meter!

Professionally accurate and affordable, the Safe and Sound Pro mmWave Meter measures 5G from 20 GHz to 40 GHz, with a flat frequency response.

Your purchase includes:

Features:

  • Detects and measures 5G in the high mmWave band, 20 GHz to 40 GHz
  • North America’s first-ever, consumer-level, high-band millimeter wave meter
  • Professionally accurate and affordable – at a fraction of the cost of current high-band detectors
  • The perfect companion to Safe and Sound Pro II RF Meter, it’s the missing link to revealing the full range of 5G frequencies
  • Digital display in micro watts/m² and V/m, includes audio, peak and average readings with maximum peak hold
  • Quickly determine RF present in your environment within 20 GHz and 40 GHz
  • Some of the more common sources the meter can detect: 5G cell towers, 5G cell phone emissions, higher frequency radar and other 5G high band devices

Includes:

  • Safe and Sound Pro mmWave RF Meter (With Standard Stub Antenna)
  • Hard plastic and or Zippered Carrying Case
  • User's Guide
  • 2 x AA Alkaline Batteries
  • 2 Year Warranty

mmWave Meter Options:

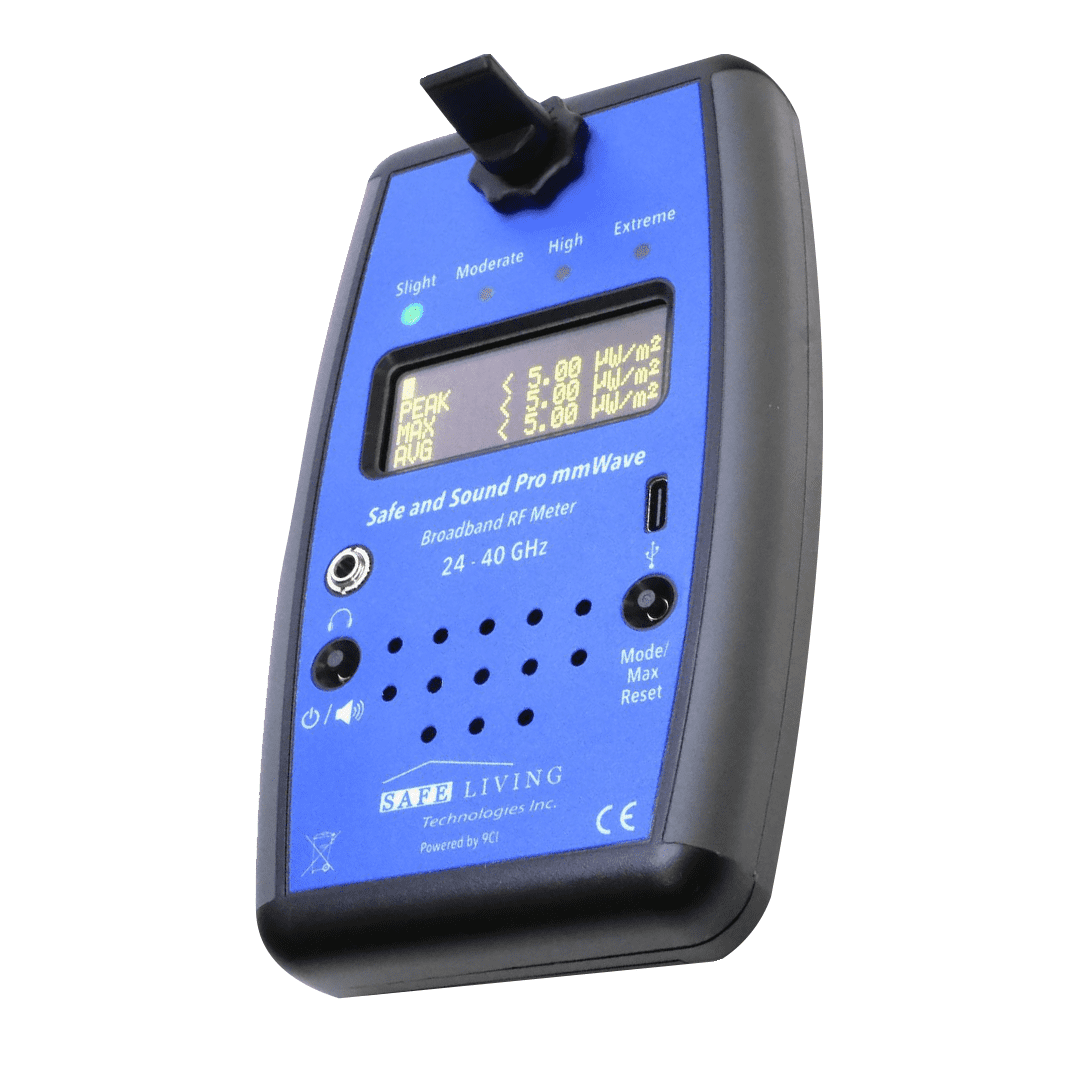

Standard "Stub" Antenna: Semi-Omni Directional:

  • Frequency Response: +/- 5dB from 20-40 GHz (effective down to 18 GHz with reduced tolerance)
  • Minimum measurable signal: 5 µW/m²
  • Maximum measurable signal: 500,000 µW/m² or (50,000,000 µW/m² with attenuator)
  • Quasi Omni-Directional reception pattern (50 degrees front and 50 degrees back)

Optional "Horn" Antenna: Directional:

  • Frequency Response: +/- 6dB from 25-40 GHz
  • Minimum measurable signal: 0.5 µW/m²
  • Maximum measurable signal: 30,000 µW/m² or (3,000,000 µW/m² with attenuator)
  • Directional reception pattern (35 degrees front)

20 dB Fixed Attenuator:

  • Allows the meter to display higher power density signals by a factor of 100
  • Range of up to 50,000,000 µW/m² with Stub Antenna + Fixed Attenuator
  • Range of up to 3,000,000 µW/m² with Directional Horn Antenna + Fixed Attenuator

Downloads:

Sold by Safe Living Technologies
Ships from Canada
